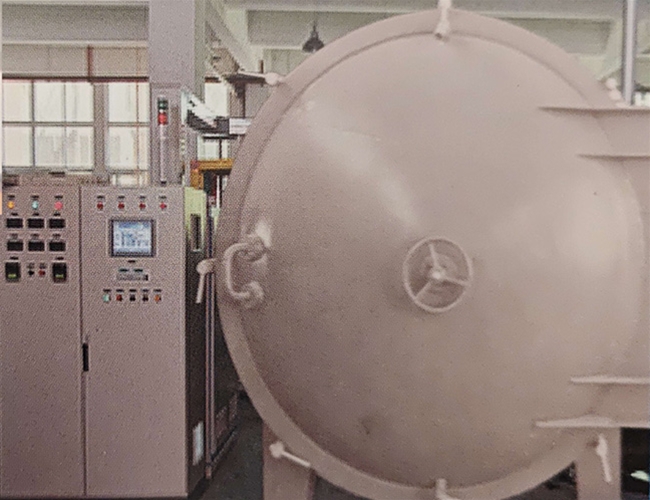

THLO-500 carbon reduction furnace
Carbon reduction reaction furnace is specially designed for vacuum reduction of metal oxides, which can be reduced and sintered in the same furnace body.
Main technical index
1. Overall dimensions :5000x7000X3500mm(length x width X height)
2. Effective size of furnace body: diameter 1910xH2000mm(with water cooling)
3. Limit vacuum :5x10-Pa(empty furnace)
4. Pressure rise rate :≤6Pa/h(empty furnace)
5. Total power :160KW
6. Heating power :130KW
7. Maximum temperature :1400℃
8. Working temperature :1200℃
9. Cooling water: flow :20~35L/min
10.Air compressor: Pressure :0.2~0.3MPa
11.System operation: Manual
