Name：Vacuum sintering furnace
Details

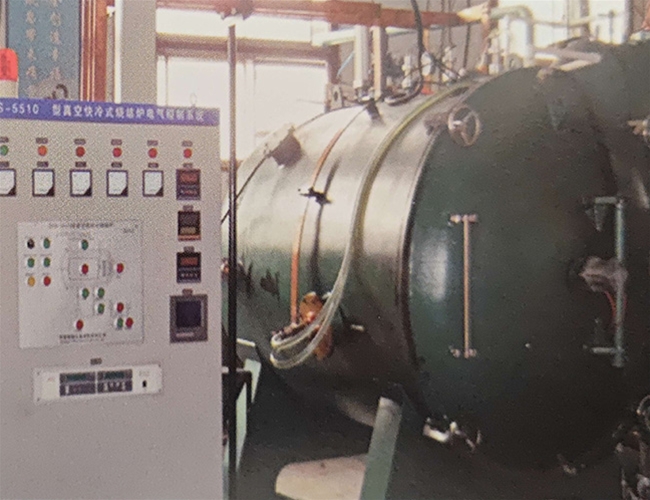

Vacuum sintering furnace
Vacuum sintering furnace is a new generation of vacuum heat treatment equipment. It has the characteristics of high vacuum, fast forced air cooling, high production efficiency, good temperature uniformity and so on. It is mainly used for vacuum sintering of magnetic materials of dry powder, homogeneous purification of hydrogen storage materials and heat treatment of tools and precision alloys.
| Type parameter | unit | ZRSQ-50 | ZRSQ-100 | ZRSQ-200 |
| Rated heating power | Kw | 15x3 | 20x3 | 50x3 |
| Supply voltage | V | 380/30 | 380/30 | 380/50 |
| Maximum operating temperature | ℃ | 1300 | 1300 | 1300 |
| Working area (L x W x H) | mm | 550x300x250 | 550x350x350 | 1000x500x500 |
| Uniform furnace temperature (500-1000℃) | ℃ | ±5 | ±5 | ±5 |
| Limiting vacuum | Pa | 8x10⁻³ | 8x10⁻³ | 8x10⁻³ |
| Rate of pressure rise | Pa/h | 6 | 6 | 6 |
| Cooling speed (1000℃ to 150℃) | min | 30 | 40 | 45 |
| Cooling water consumption | m3 /h | 18 | 18 | 22 |
| Overall dimensions (L x W x H) | m | 5.7x4.8x2.5 | 5.7x48x2.5 | 7.5x5.0x3.0 |
