Main technical parameters of Vacuum smelting furnace

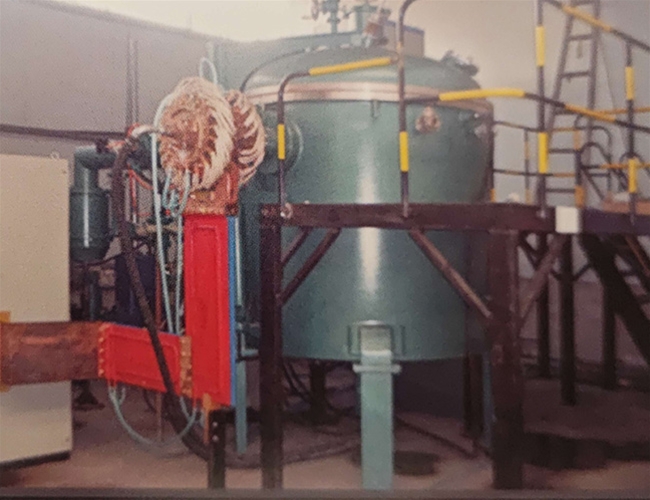

Vacuum smelting furnace is a complete set of vacuum smelting equipment which can melt metal by using the principle of medium frequency induction heating under vacuum conditions. Suitable for scientific research and production of nickel base and special steel, precision alloy, Ndfeb, dysprosium, active metal, superalloy
Hydrogen storage materials, magnetic materials, etc. are melted and cast in a vacuum or protective atmosphere.
Type parameter | capacity | Maximum operating temperature | Limiting vacuum | Rate of pressure rise | Rated medium frequency power | Rated IF frequency | Intermediate frequency voltage | Cooling water consumption | Cooling water pressure |
unit | kg | ℃ | Pa | Pa/h | Kw | Hz | V | m/h | MPa |
ZG-0.0005 | 5 | 1650 | 6.67x10⁻³ | 6.7 | 50 | 4000 | 300 | 2.4 | 0.3 |
ZG-0.001 | 10 | 1650 | 6.67x10⁻³ | 6.7 | 50 | 4000 | 300 | 2.4 | 0.3 |
ZG-0.025 | 25 | 1650 | 6.67x10⁻² | 6.7 | 100 | 2500 | 750/375 | 3.6-6 | 0.3 |
ZG-0.05 | 50 | 1650 | 6.67x10⁻² | 6.7 | 100 | 2500 | 750/375 | 6 | 0.3 |
ZG-0.1 | 100 | 1650 | 1x10⁻¹ | 6.7 | 160 | 2500 | 750/375 | 9 | 0.3 |
ZG-0.2 | 200 | 1650 | 1x10⁻¹ | 6.7 | 250 | 1000 | 750/375 | 13.5 | 0.3 |
ZG-0.5 | 500 | 1650 | 1x10⁻¹ | 6.7 | 200 | 1000 | 750 | 40 | 0.3 |
